概述
   ICS17系列皮帶秤，動態累誤差小于±0.5%，用于工廠和過程稱重中，監測生產量、控制產品裝載及監測產品庫存量，為企業現代化管理提供重要的信息。
結構組成
   ICS17系列皮帶秤主要由以下幾部分組成：17型杠桿式稱重橋架、60-12C型測速傳感器、稱重傳感器、XK2001型積算器。
工作原理
  稱重橋架中的稱重傳感器檢測皮帶上物料重量，送入積算器；測速傳感器檢測皮帶速度，將速度信息送入積算器。積算器把接收到的速度信號及重量信號進行處理，得到物料的累計量及瞬時流量。

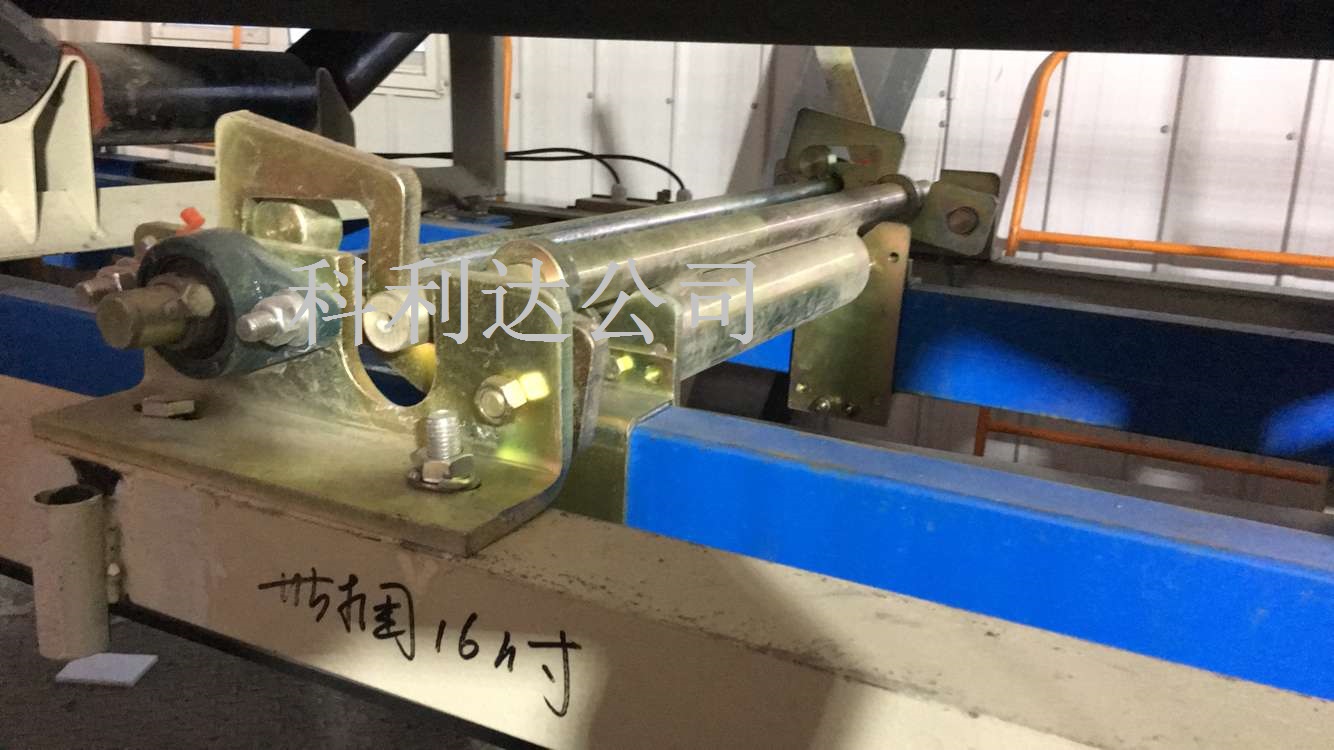

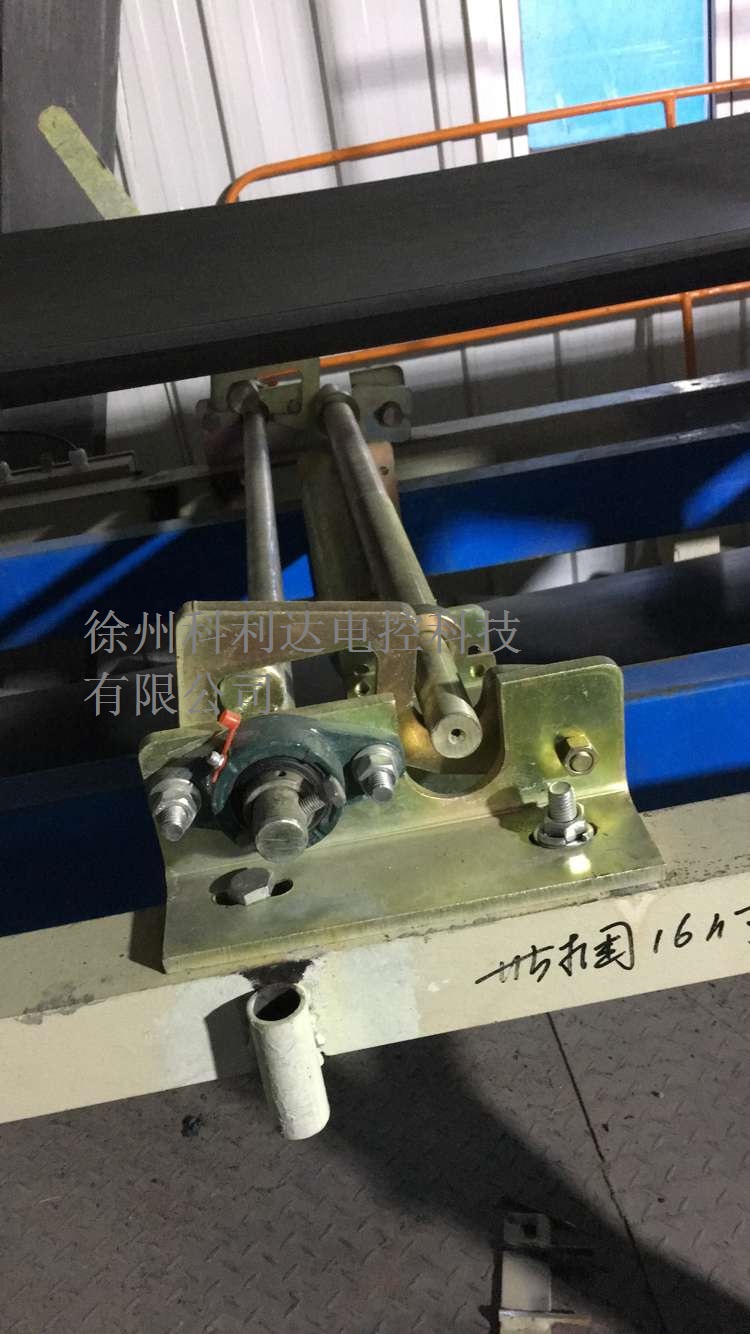

17A型稱重秤架
   17A型稱重橋架在杠桿上裝有四組或二組托輥，采用雙稱重傳感器支承，外側支承采用無磨擦耳軸支點，這種封閉裝置可以防震、防潮、防腐及防止物料堆積，因而在惡劣的環境中不發生使用刀口裝置和軸承裝置帶來的問題。
  稱重橋架的主梁采用矩型鋼管，這使整個稱重橋架具有足夠高的鋼性、較小的自重，外表積灰面積達到最低。為了保證整個系統的穩定性，高精度電阻應變片式傳感器安裝于受拉部位，以減少非線性誤差。
  稱重橋架可以直接裝在各種不同寬度的皮帶輸送機架內，位于上下皮帶之間，不占用空間高度。它是一個已在工廠組裝好的整體，可以迅速方便地安裝和校準
  該稱重橋架適應皮帶寬度從400-2200mm。
特點
◇無運動或磨損部件，維護量極?。?br/>◇抗側向力、水平分力設計，皮帶跑偏、水平分力影響極小
◇整體變形小于0.1mm
◇高強度矩形管，保持校準的穩定，減少物料堆積及零點漂移

Ramsey（原“拉姆齊”） 17系列電子皮帶秤

The Ramsey Series 17 Belt Scale System is specifically designed for plant and process operations that run at high rates of speed or require the better-than-normal accuracy of ±0.25%. The Ramsey Series 17 lets you monitor production output and inventory, or regulate product loadout, while providing vital information for the effective management and efficient operation of your business.

The Ramsey Series 17 Belt Scale System combines the time-proven reliability of the Ramsey 10-17 Weighbridge and the Ramsey 60-12 Belt Speed Sensor with the power and versatility of the advanced electronics in the Ramsey Micro-Tech 2000 and Ramsey Micro-Tech 3000 series of electronic integrators.The long weighbridge design of the Ramsey Series 17 allows this model to be offered as a highly accurate 0.25% scale system. The longer weighbridge permits more scale-borne time, which minimizes alignment errors. This translates into better accuracy.
This belt scale system is available in two or four idler versions.
Performance Guarantee
On factory-approved installations, we guarantee that the Ramsey Series 17 Belt Scale System will weigh and totalize to a value within 0.25% of the test value when calibrated against a known test weight, chain, or Thermo Scientific’s standard electronic calibration.
